Inspired by
Nature

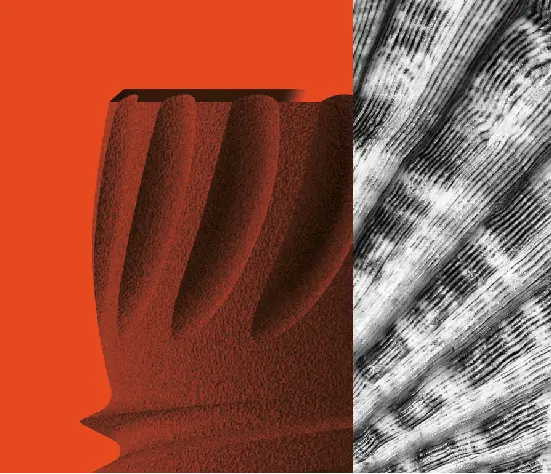

How to esthetically replace teeth? The Maya learned from their habitat… presented with an ingenious solution… using seashells.

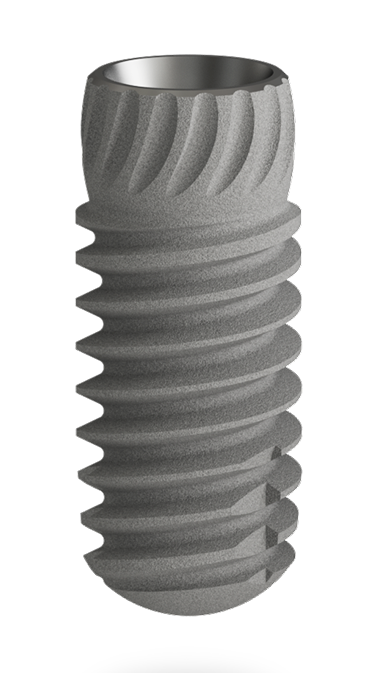

Botticelli Implant
With its unique design the Botticelli Implant allows for efficient and pragmatic treatment solutions. The system is decidedly lean and uncompromisingly straightforward. With less than 100 components the Botticelli implant system increases treatability and reduces complexity.
UNIQUE. SIMPLE. SWISS MADE.
Three exclusive features

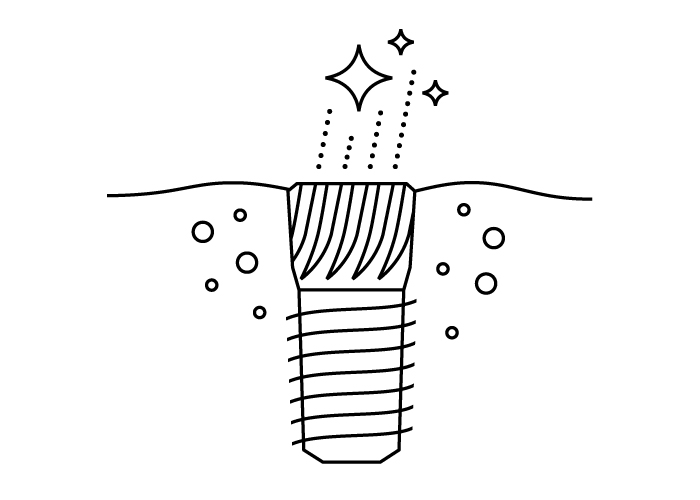

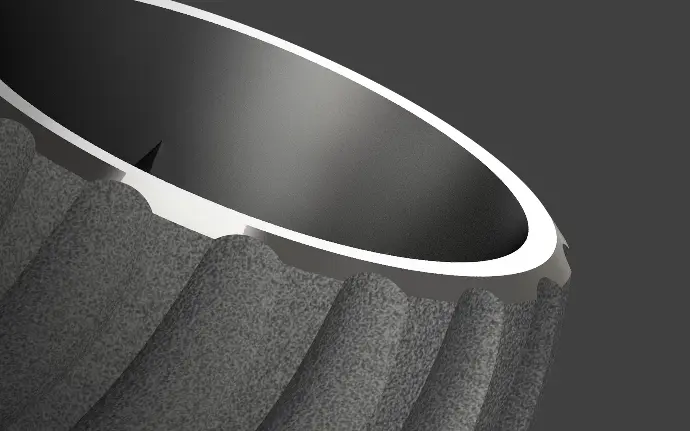

Convenient implant cleaning

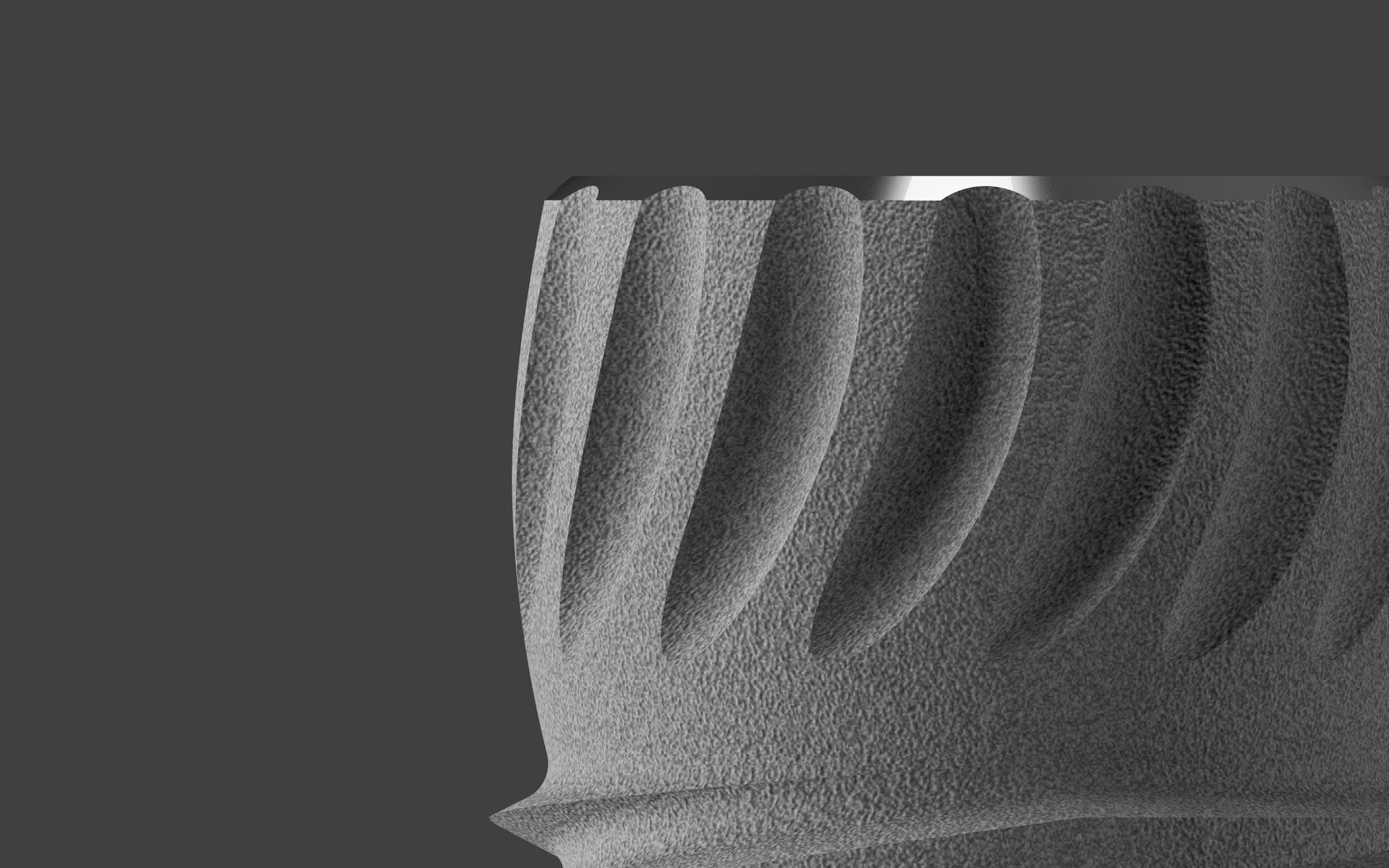

In case of bacterial contamination the shell-like structure permits direct access with a brush.
Easy bone augmentation
The vertical grooves provide a retention for bone augmentation material.

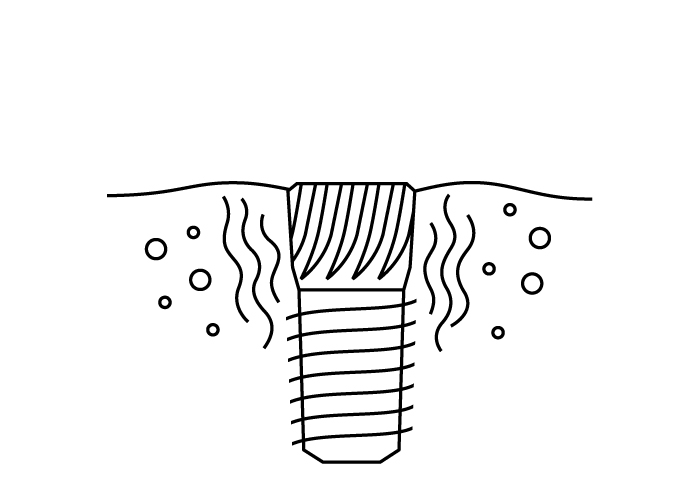

Preservation of marginal bone loss
The unique design of the implant shoulder allows for a better blood supply, leading to an enhanced and stronger bone formation around the implant.
Making the life of the dentist easy
What is simple to do provides a high quality standard and reduces the risk of complications.

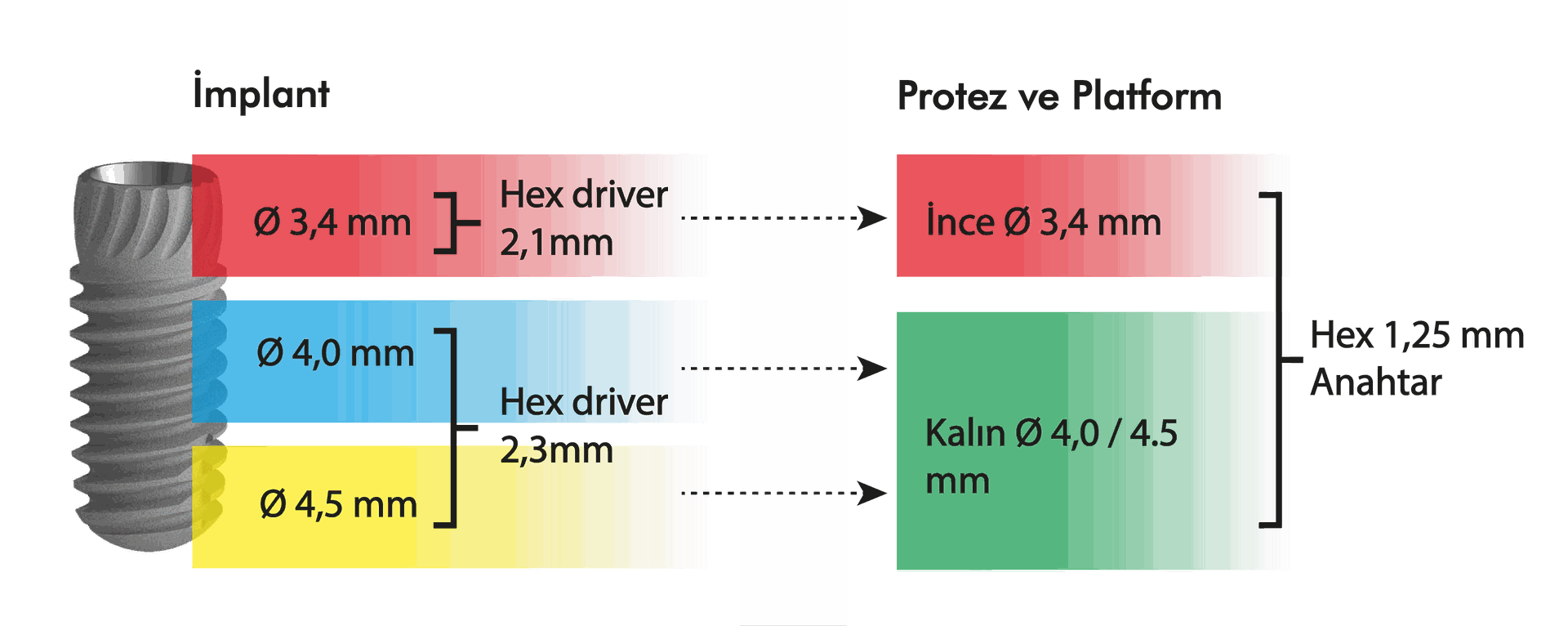

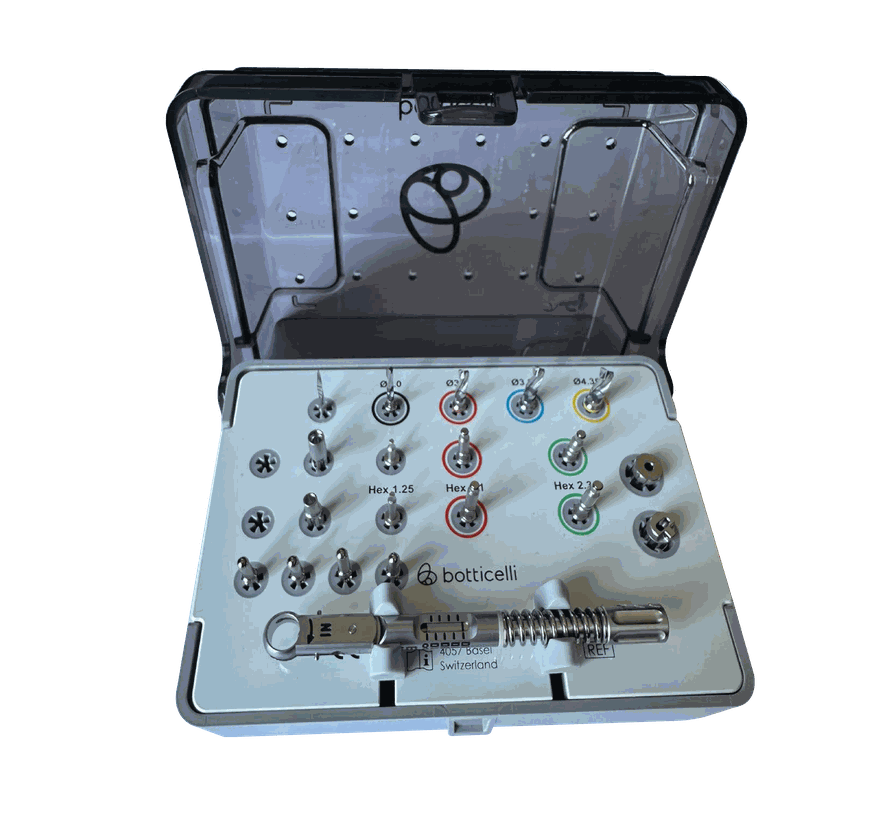

Lean system with only about 100 components instead of 3000+ components of other systems. Clear arrangement and color coding of parts, 3 diameters with different lengths of implants.

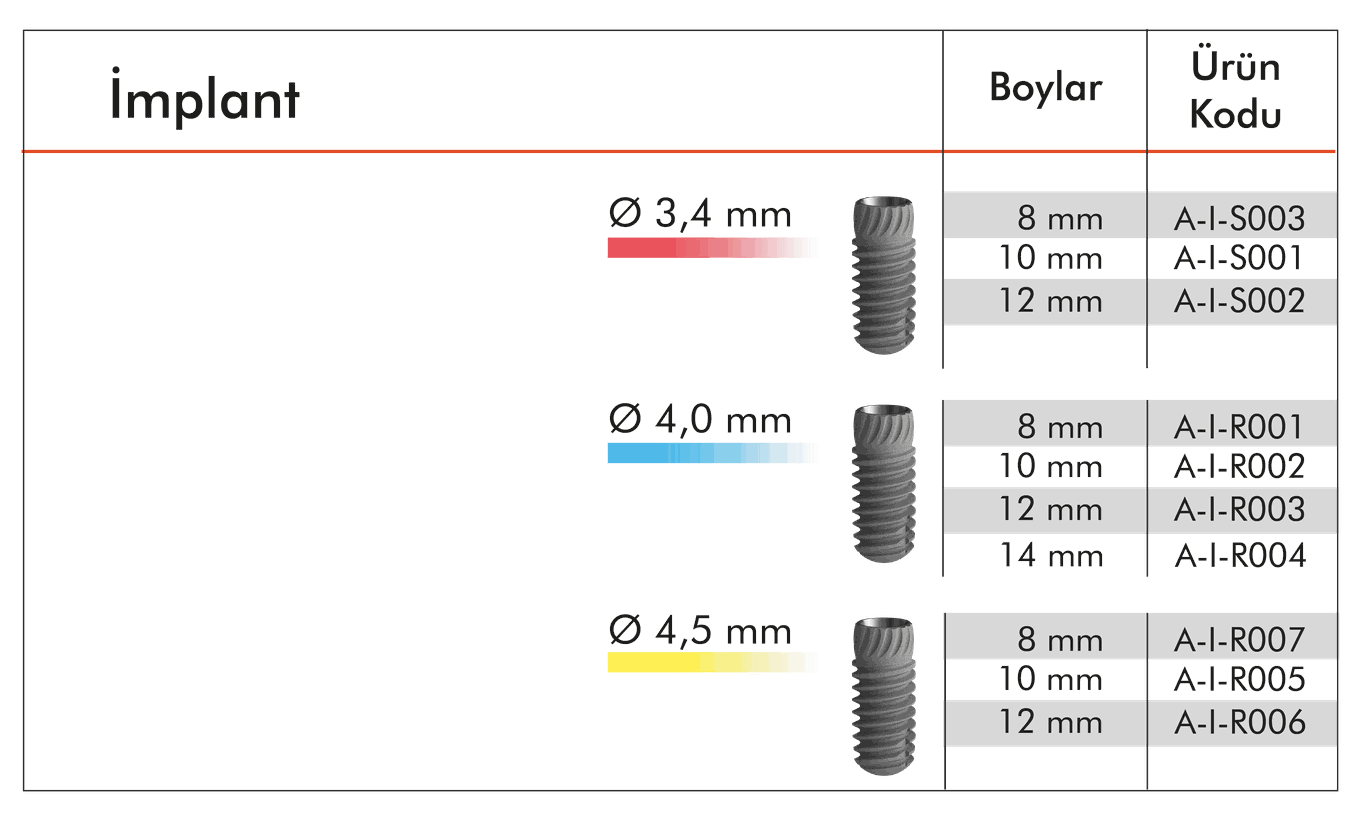

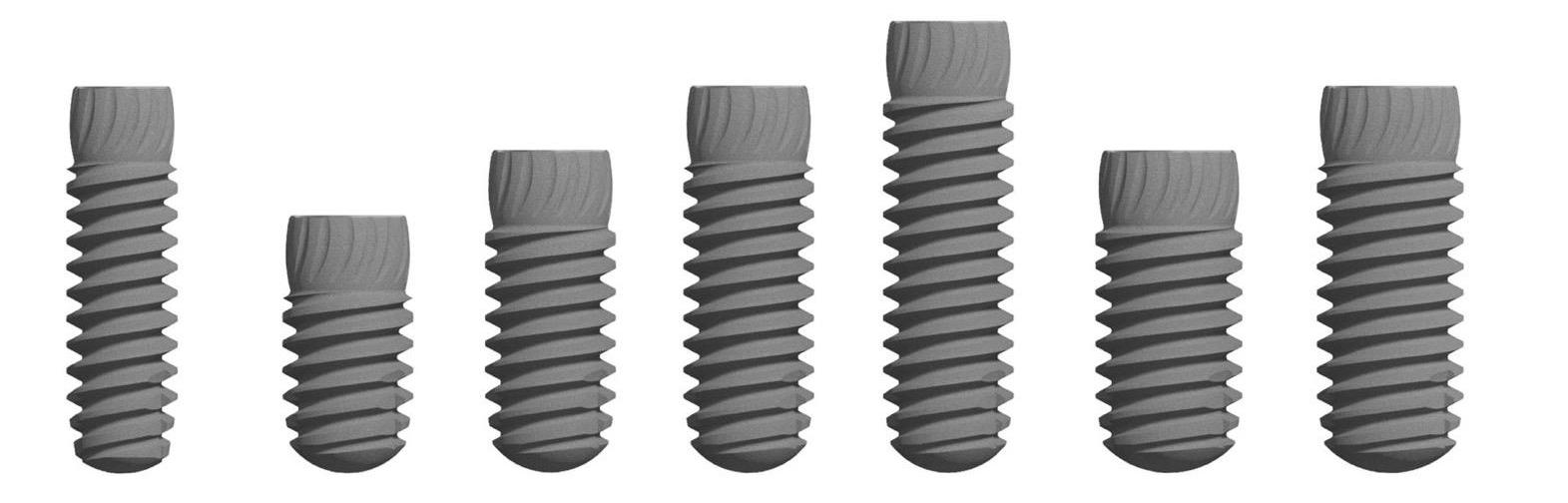

Material: Ti Grade 4 / Diameters / Length:
3.4 diameter in 8mm, 10mm and 12 mm
4.0 diameter in 8mm, 10mm, 12 mm and 14mm
4.5 diameter in 8mm, 10mm and 12 mm
Botticelli Prosthetics - Standard Abutments small
Standard Abutments (Ti Grade 5) in 5 different Types: Straight, Straight Platform, Straight anatomical, Angulated 15° anatomical, Angulated 25° anatomical. All Abutments are available in different Gingival heights.

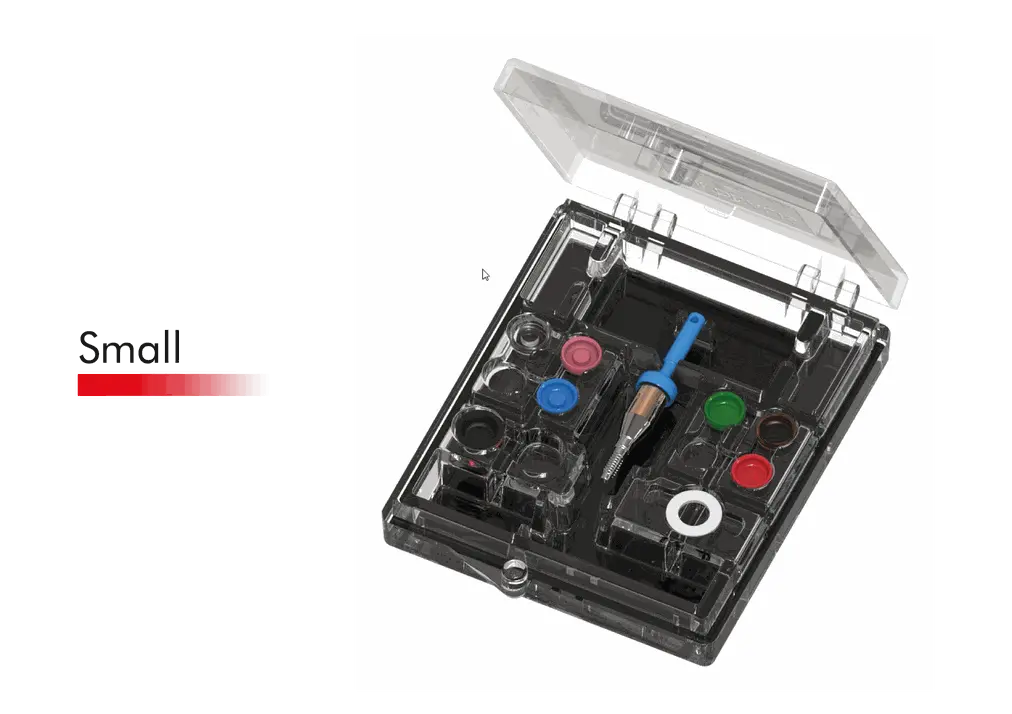

SMALL for 3.4mm Diameter implants (Red Color Coding)
Botticelli Prosthetics - Standard Abutments regular
Standard Abutments (Ti Grade 5) in 5 different Types: Straight, Straight Platform, Straight anatomical, Angulated 15° anatomical, Angulated 25° anatomical. All Abutments are available in different Gingival heights.

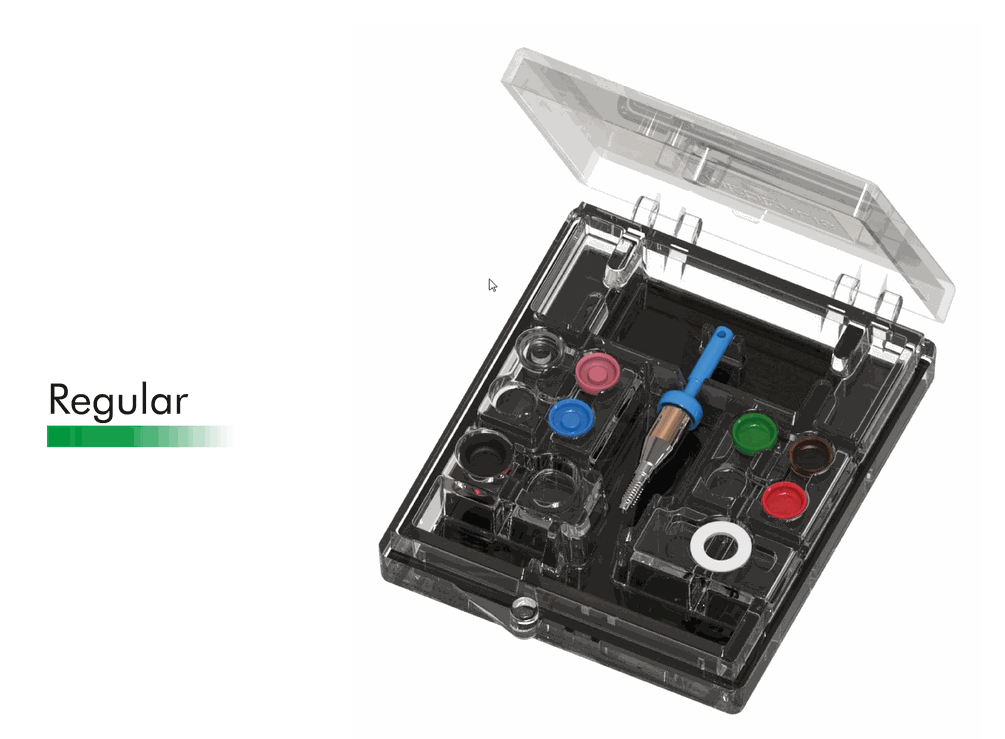

REGULAR for 4.0 / 4.5mm Diameter implants (Green Color Coding)
Botticelli Impression Components
For the 2 Prosthetic Platforms impression components are available for both, open as well as closed impression technique.:
SMALL for 3.4mm Diameter implants (Red Color Coding)
REGULAR for 4.0 and 4.5 mm Diameter implants (Green Color Coding)

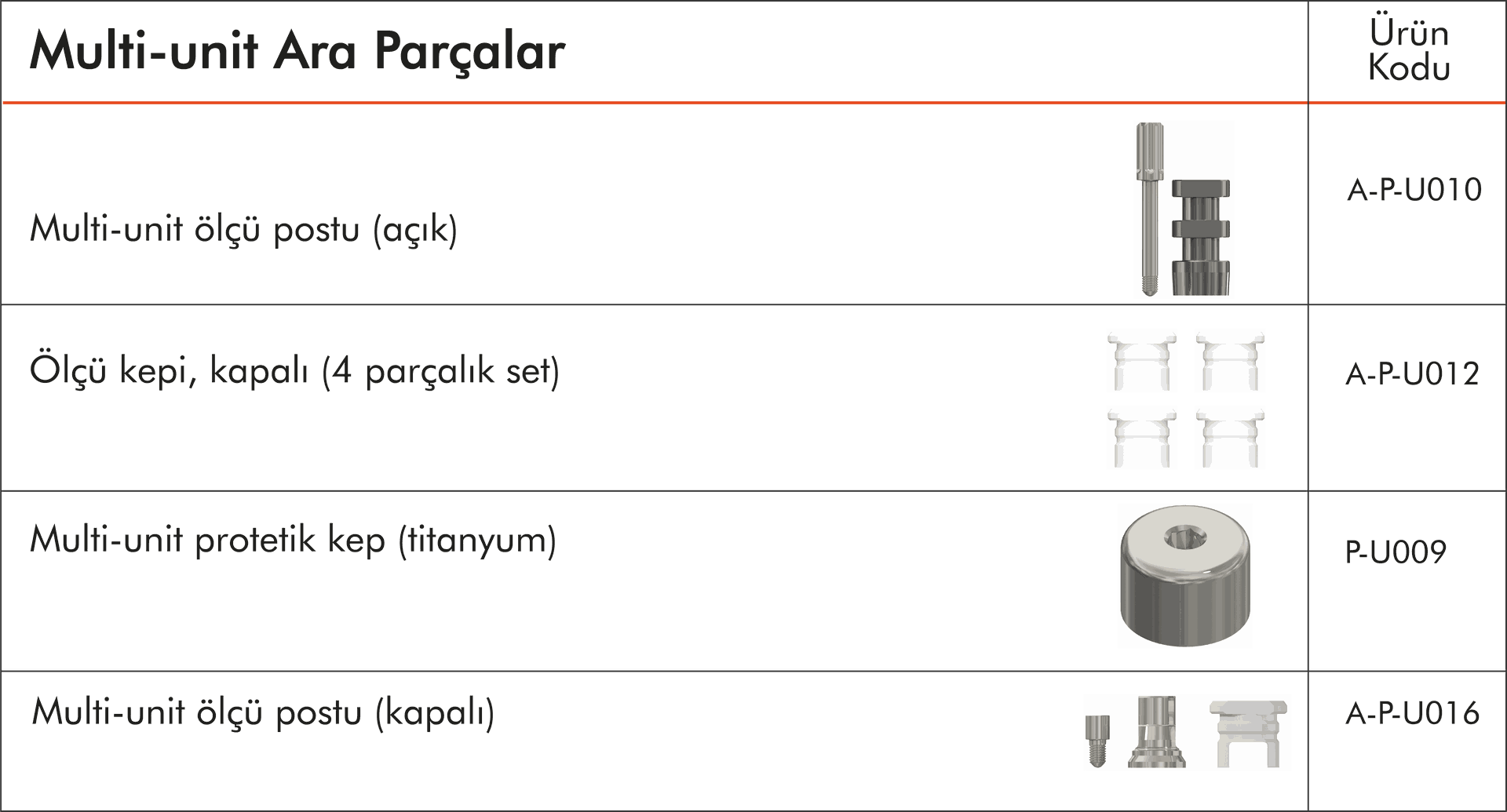

Botticelli Prosthetics – Multi Unit (MU) Abutment System.
2 Prosthetic Platforms (Ti Grade 5) for screw retained prosthetics :
SMALL for 3.4mm Diameter implants (Red Color Coding), hex & non-hex
REGULAR for 4.0 and 4.5 mm Diameter implants (Green Color Coding), hex & non-hex

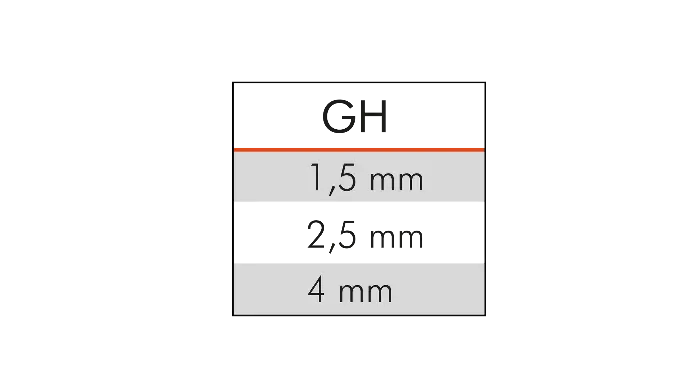

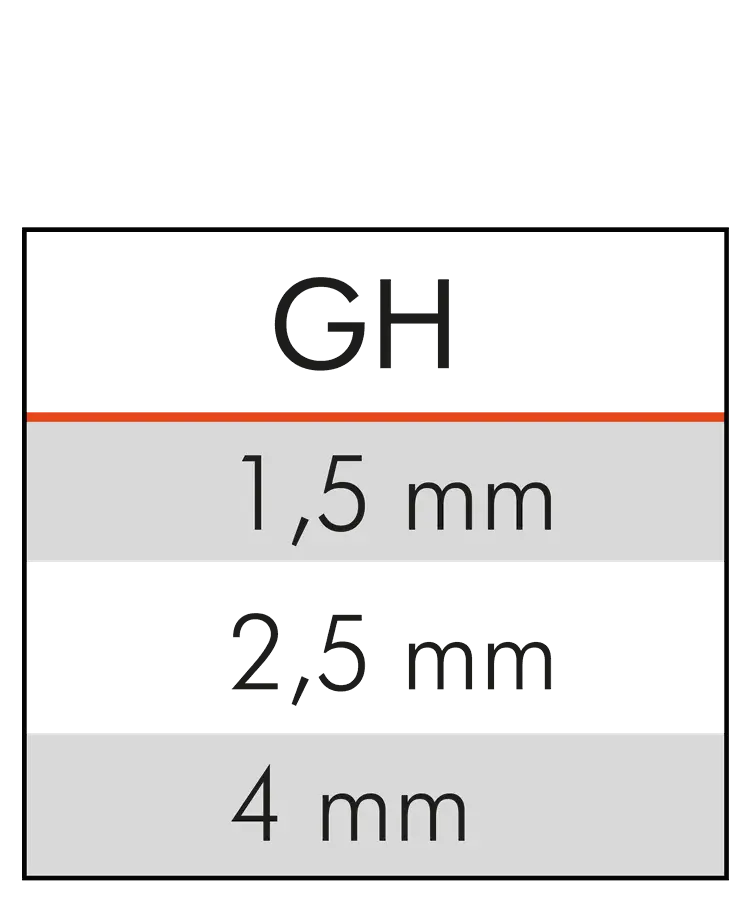

Both Platforms include 2 different gingival heights
3 Types: straight, angulated 17°, angulated 30°

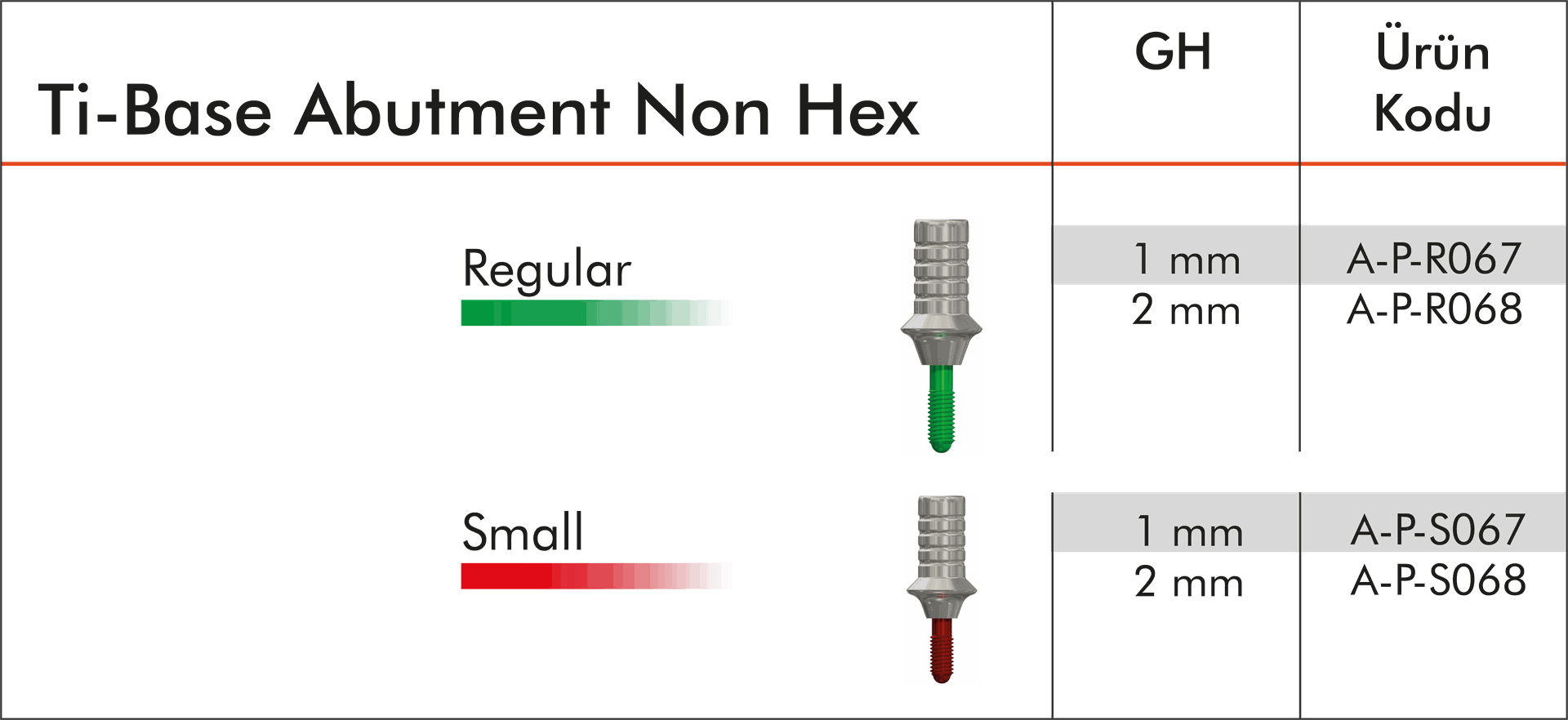

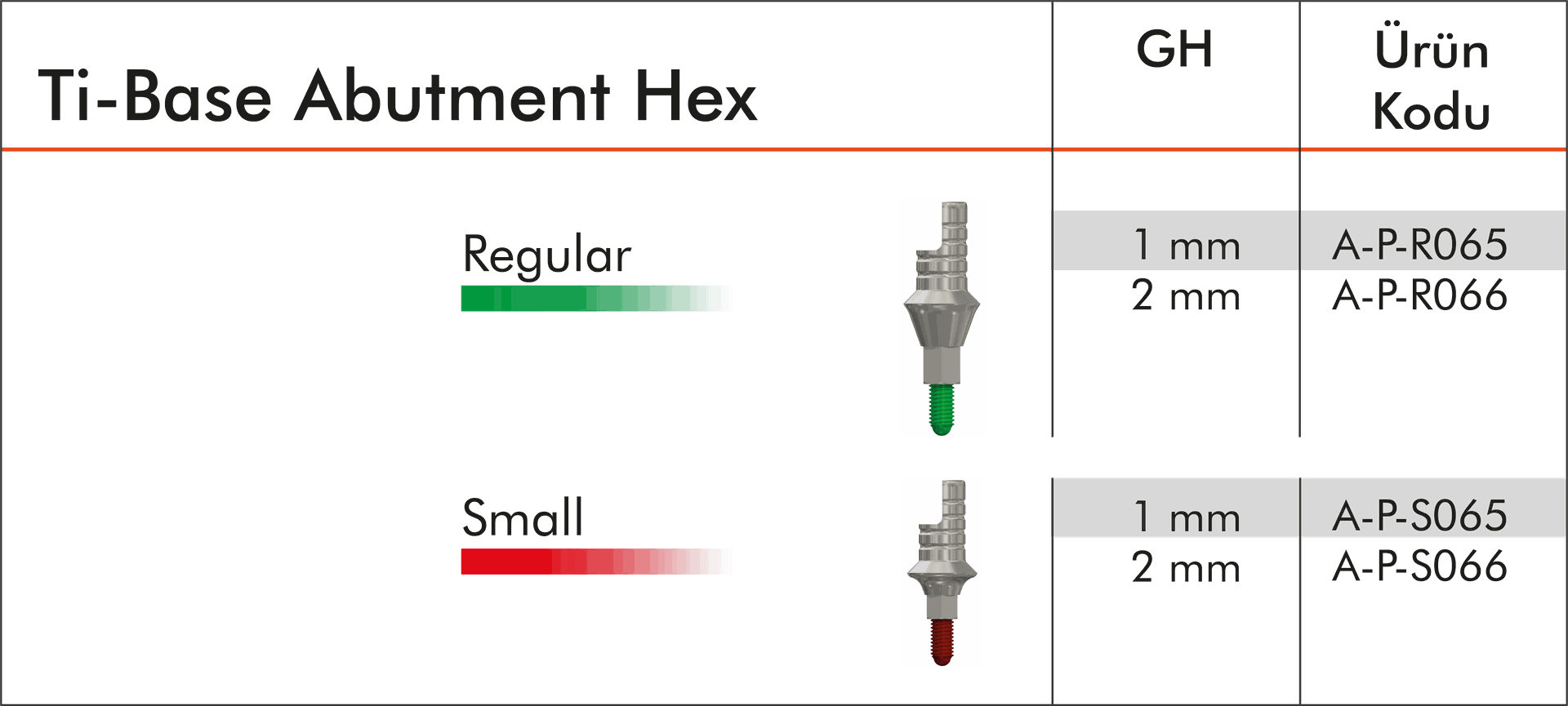

Botticelli Prosthetics – CAD CAM Abutments / TiBase.
2 Prosthetic Platforms (Ti Grade 5) :
SMALL for 3.4mm Diameter implants (Red Color Coding), hex & non-hex
REGULAR for 4.0 and 4.5 mm Diameter implants (Green Color Coding), hex & non-hex
Both Platforms include 2 different gingival heights
Botticelli Prosthetics – CAD CAM Abutments / Preface.
2 Prosthetic Platforms (Ti Grade 5) :
SMALL for 3.4mm Diameter implants (Red Color Coding)
REGULAR for 4.0 and 4.5 mm Diameter implants (Green Color Coding)
Preface abutment blanks are available with Medentika milling connection and are available in 2 sizes for either straight or angulated abutment production in the lab.
Botticelli Scan Bodies
For the 2 Prosthetic Platforms scan bodies are available for implant level scanning. SMALL for 3.4mm Diameter implants (Red Color Coding)
REGULAR for 4.0 and 4.5 mm Diameter implants (Green Color Coding)
An additional scan body is provided for MU Abutments (abtument level scan)
Botticelli CAD CAM Prosthetic libraries.

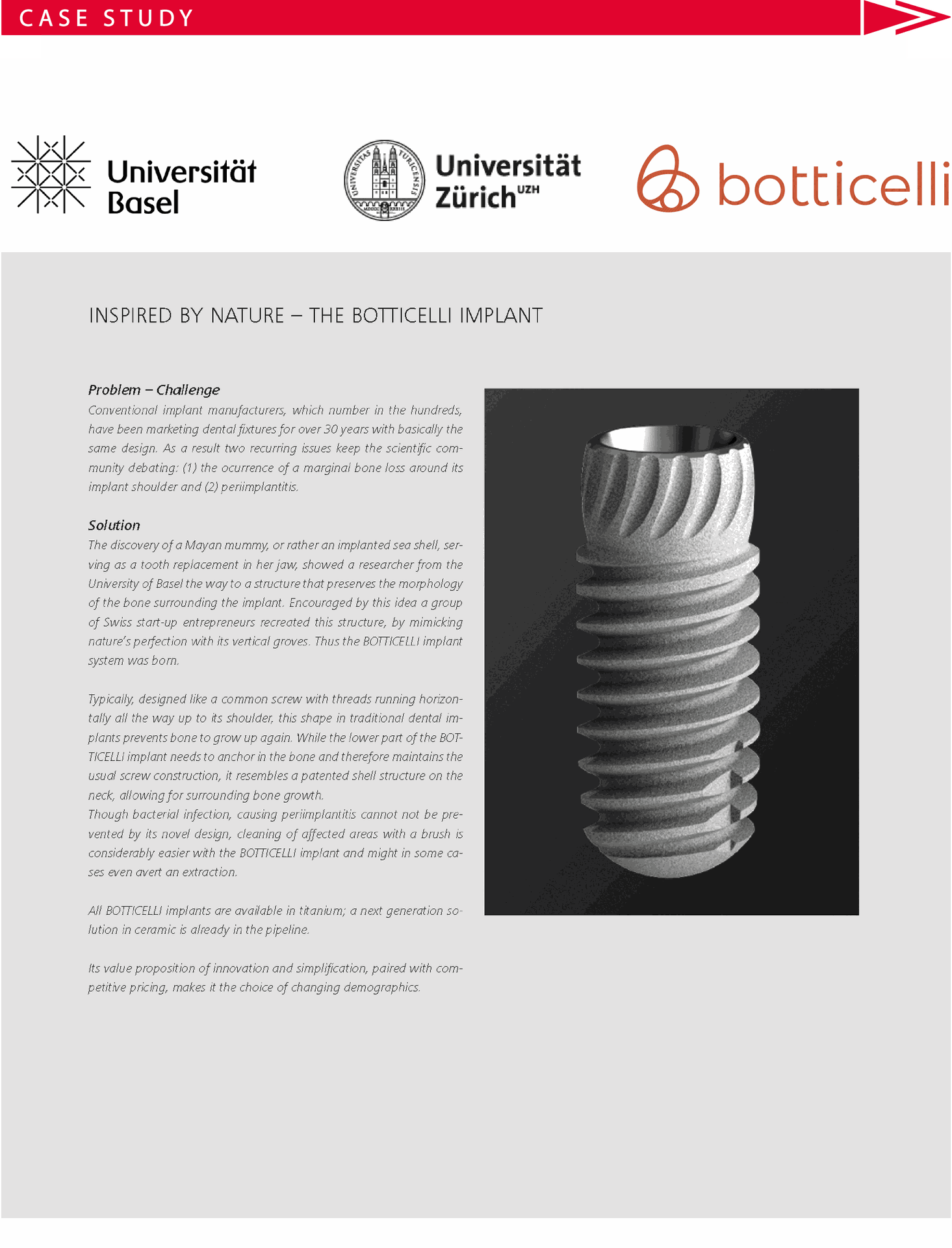

You can download the detailed implant document to learn more.
